Built-in styles

Overview

Built-in styles are pre-defined style options that are displayed in the Design sidebar of Experiences. The full list of options can be found below.

1
  'cfVisibility',
2
  'cfHorizontalAlignment',
3
  'cfVerticalAlignment',
4
  'cfMargin',
5
  'cfPadding',
6
  'cfBackgroundColor',
7
  'cfWidth',
8
  'cfMaxWidth',
9
  'cfHeight',
10
  'cfImageAsset',
11
  'cfImageOptions',
12
  'cfBackgroundImageUrl',
13
  'cfBackgroundImageOptions',
14
  'cfFlexDirection',
15
  'cfFlexWrap',
16
  'cfFlexReverse',
17
  'cfBorder',
18
  'cfBorderRadius',
19
  'cfGap',
20
  'cfFontSize',
21
  'cfFontWeight',
22
  'cfLineHeight',
23
  'cfLetterSpacing',
24
  'cfTextColor',
25
  'cfTextAlign',
26
  'cfTextTransform',
27
  'cfTextBold',
28
  'cfTextItalic',
29
  'cfTextUnderline',
30
  'cfBackgroundImageScaling',
31
  'cfBackgroundImageAlignment',
32
  'cfBackgroundImageAlignmentVertical',
33
  'cfBackgroundImageAlignmentHorizontal',

To stay up to date on the latest set of Built-in styles check CF_STYLE_ATTRIBUTES in the constants file in the Studio Core package source code.

Enable built-in styles

To enable built-in styles, first define and register a custom component and then add the builtInStyles property to the component definition like below.

1
import type { ComponentDefinition } from '@contentful/experiences-sdk-react'
2
3
export const subheadingComponentDefinition: ComponentDefinition = {
4
  id: 'subheading',
5
  name: 'Subheading',
6
  category: 'Atoms',
7
  builtInStyles: ['cfMargin', 'cfPadding', 'cfBackgroundColor'],
8
  variables: {
9
    text: {
10
      displayName: 'Text',
11
      type: 'Text',
12
      defaultValue: 'Subheading',
13
    },
14
    variant: {
15
      displayName: 'Variant',
16
      type: 'Text',
17
      defaultValue: 'dark',
18
      group: 'style',
19
      validations: {
20
        in: [{ value: 'light' }, { value: 'dark' }]
21
      }
22
    }
23
  }
24
}

In the example above, by including the builtInStyles property in the definition we enable the following built-in styles:

• Margin
• Padding
• Background

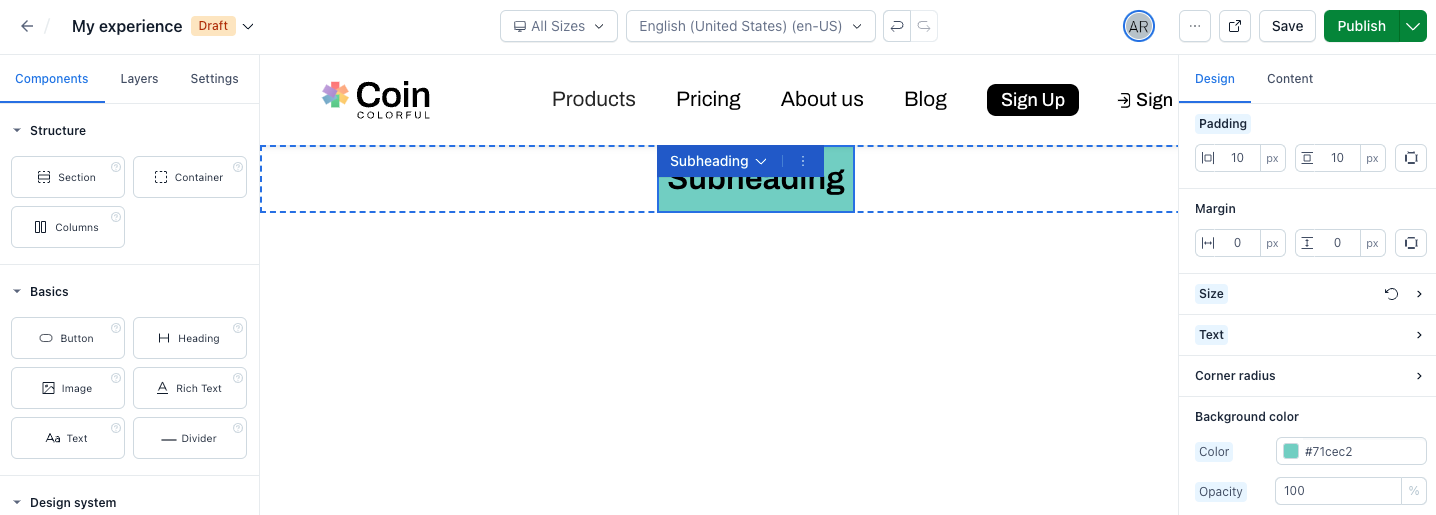

These built-in styles are displayed as options in the Design tab for the “Subheading” custom component.

Modifying the default value for built-in styles

Default values can be specified when using built-in styles in the component definition.

To use a built-in style with a custom default value:

1. Remove the built-in style’s prop name from the builtInStyles array (otherwise the custom default value is ignored).
2. Add the built-in style to the variables object as a key-value pair, where key is the style prop name and value is the full variable definition which includes your new defaultValue. The following example demonstrates a component definition that uses the built-in styles for margin and padding. The margin widget will be enabled with the standard default value, while the padding widget is enabled with a custom default value of '0 10px 0 10px':

1
import type { ComponentDefinition } from '@contentful/experiences-sdk-react';
2
3
const exampleComponentDefinition: ComponentDefinition = {
4
  id: 'example',
5
  name: 'Example',
6
7
  // Enable the margin widget with its standard default value
8
  builtInStyles: ['cfMargin'],
9
10
  // Enable the padding widget with a custom default value
11
  variables: {
12
    cfPadding: {
13
      displayName: 'Padding',
14
      type: 'Text',
15
      group: 'style',
16
      defaultValue: '0 10px 0 10px'
17
    }
18
  }
19
};
